The Zenit is a modern rigid wheelchair with the added benefits of Numerous adjustment options that permit individual adaptation for even greater comfort. With an elegant carbon finish option the S styled frame makes for an appealing design.
The Zenit’s best feature is its adaptability and lightweight frame. With an option to have a permanent welding of the drive wheel connection and back tube referenced as the Zenit CLT model of the range it gives an extremely robust finish with a highly efficient force transmission.
- Fine-tuned centre of gravity actively or passively by +/- 12 mm due to the rotating drive wheel adapter.
- Carbon fibre or aluminium frame material
- A permanently welded front wheel attachment option (Zenit R CLT)

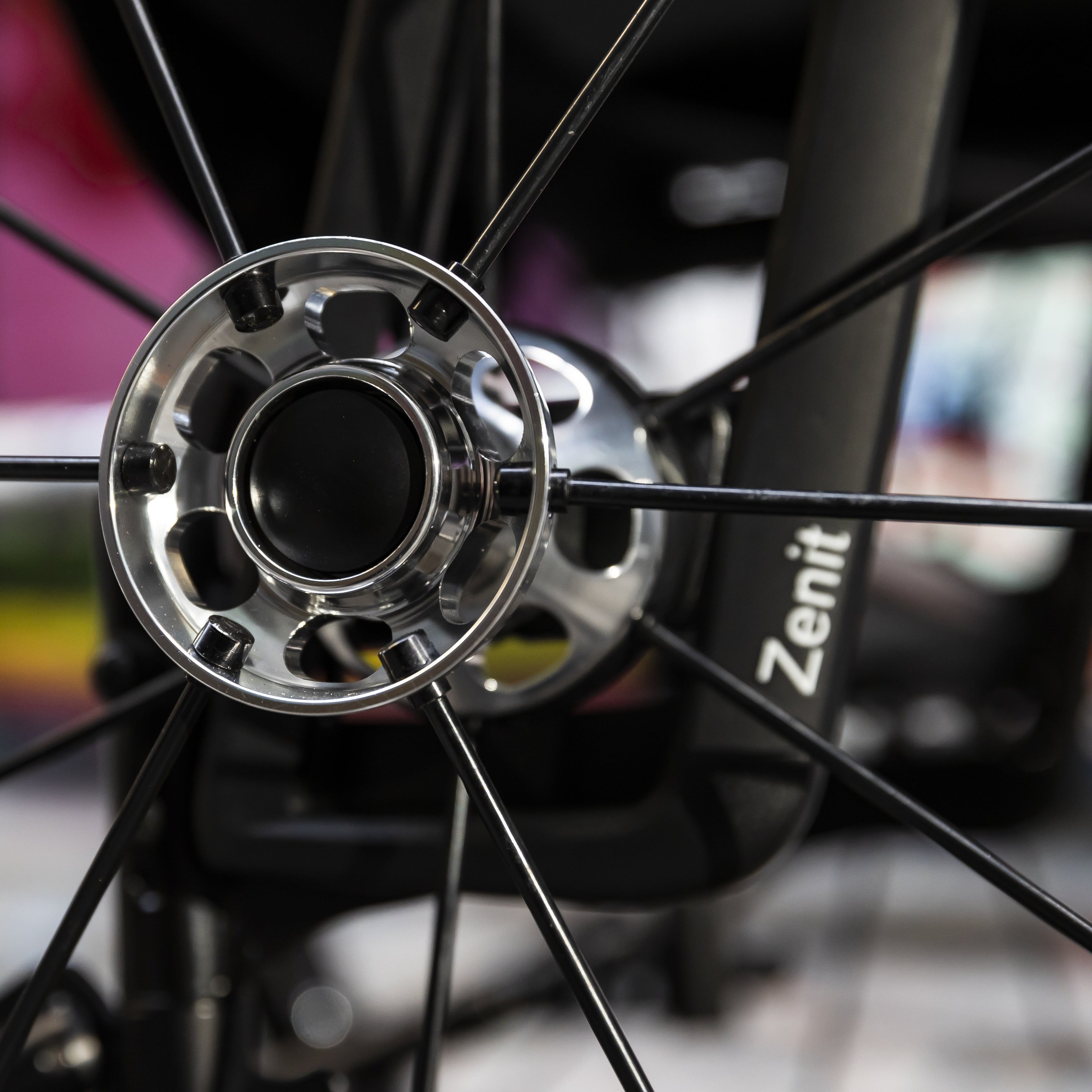

The Zenit is designed in such a way that you can make the fine adjustment of the wheelbase 1.2 cm more active or passive by rotating the rear wheel adapter. This benefits both experienced users, who are already familiar with adjusting their centre of gravity, as well as first-time users. Continuous adjustment through the frame allows for optional fine-tuning. With our CLT version, the permanently welded drive adapter saves an additional 8.9kgs of the Zenit‘s total weight.
Technical data: Aluminium/ Carbon CLT
Overall length: 640 – 1,040 mm/ 640 – 1,040 mm
Overall width: 495 – 710 mm/ 495 – 710 mm
Overall height: 620 – 1,050 mm/ 620 – 1,050 mm
Seat width: 320 – 460 mm/ 320 – 460 mm
Seat depth: 360 – 500 mm/ 360 – 500 mm
Front seat height: 380 – 540 mm/ 380 – 540 mm
Rear seat height: 370 – 500 mm/ 370 – 500 mm
Back support height: 250 – 500 mm/ 250 – 500 mm
Lower leg length: 280 – 510 mm/ 280 – 510 mm
Anterior frame angle: 75°/ 85° 75° /85°
Max. load: 120 kg/ 100 kg
Weight from approx: 8.8 kg/ 8.5 kg 7.4 kg
Transport weight (without drive wheels) from approx: 6.3 kg/ 6.0 kg 4.9 kg
*Price listed is for base model with no extras
Warranty details & Regulatory Information
All OTTO BOCK branded wheelchairs and other mobility products are warranted against faults in material and workmanship for two (2) years from purchase by Otto Bock Australia Ply Ltd. This warranty period does not apply to batteries and actuators, which are warranted for one (1) year from purchase.
Ottobock Warranty PDF
Ottobock compliance with Australian Standards PDF
Price List and Order Form PDF
